Equipment Technical Specification

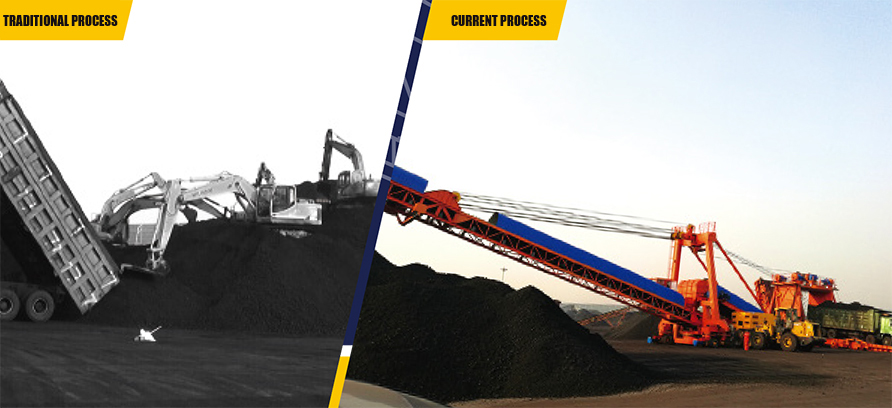

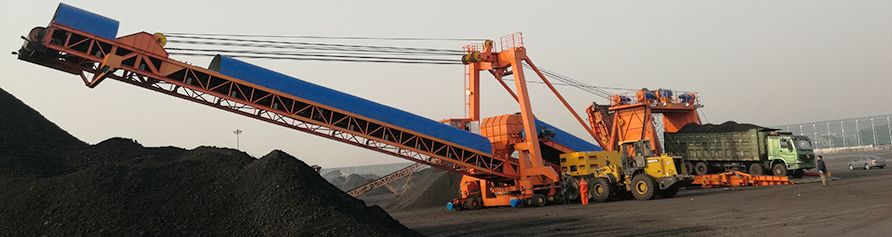

1).Process Flow :Bulk cargo transported by truck- -Feeder chute- -Feeding Belt conveyor- -Transfer  chute- - boom conveyor--Material field

2). To meet environmental requirements, using water spray dustproof technology. The water spraying system is installed in the feeder chute, the transfer chute and the boom discharging point to control dust. Water tank set capacity is 6 cubic meter, can be adjusted according to the actual situation;

3). Boom belt conveyor provided with pitch function and slewing function , fixed-point stacking material tonnage is about 4000 ton, to handle 4 million tons ocean vessel it only need to move ten times;

4).Equipment with self-moving function, using a full drive mode of moving, wheels can be rotated at the same time and also rotated separately, so it can move forward and backward, translation around, in-situ rotation and other multiple degrees of freedom of action. Rapid displacement can be achieved in the process of stacking;

5). The driver room is set in front of the device, with wide view when operating, HD cameras are set on many places of device, The driver can grasp all conditions around the equipment and work condition by means of monitor;

6). The belt conveyor drive motor and the traveling motor all adopt the frequency conversion motor, can adjust its operating speed according to the actual loading condition;

7). Device Set up Truck Dual Lane , to reduce truck waiting time, and greatly improve working efficiency;

8).Feeding model : trucks(＜60 tons）, loading vehicles（＜10tons）

9). 40tons-truck running time is 60s, one-hour cycle 60 times, device effective work efficiency is 2400t/h; Maximum allowable truck overload is to 60 tons, productivity instantaneous peak is 3600t/h.
